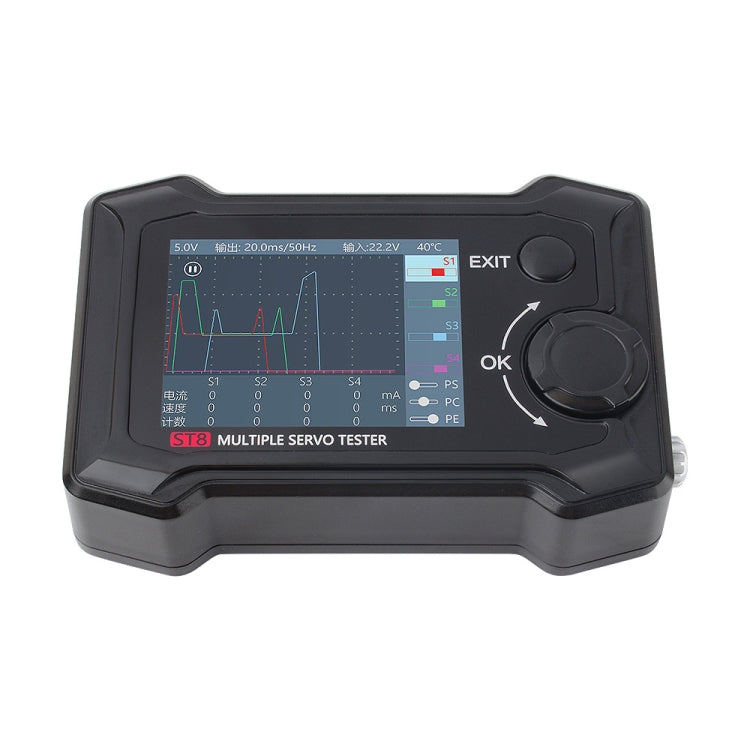

ToolkitRC ST8 Multi-Channel Servo Tester Signal Test Current Collector(Black)

$53.23

ToolkitRC ST8 Multi-Channel Servo Tester Signal Test Current Collector(Black)

Name: ToolkitRC ST8 Multi-Channel Servo Tester Signal Test Current Collector(Black)
Brand: Salrog (Powered by Solnuance)
SKU: TBD0604940101A
Price: 53.23 USD
Availability: InStock

$53.23

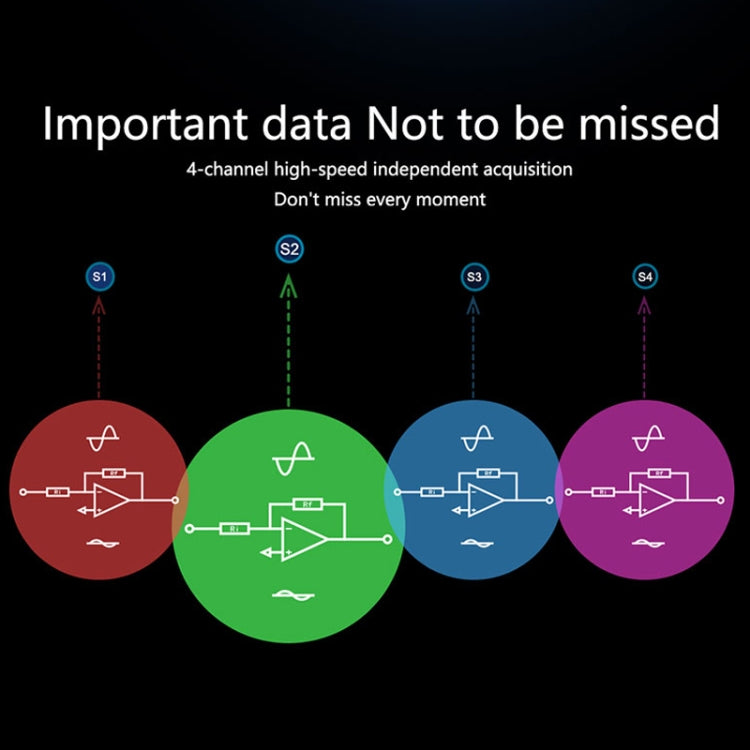

1. 4-channel high-speed independent acquisition, data is not easy to lose

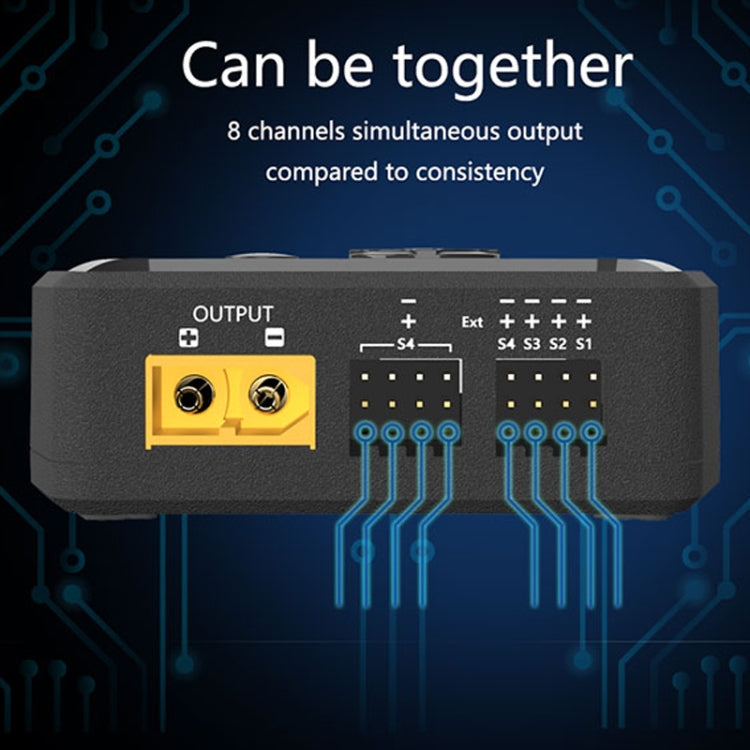

2. 8-channel simultaneous output, higher efficiency

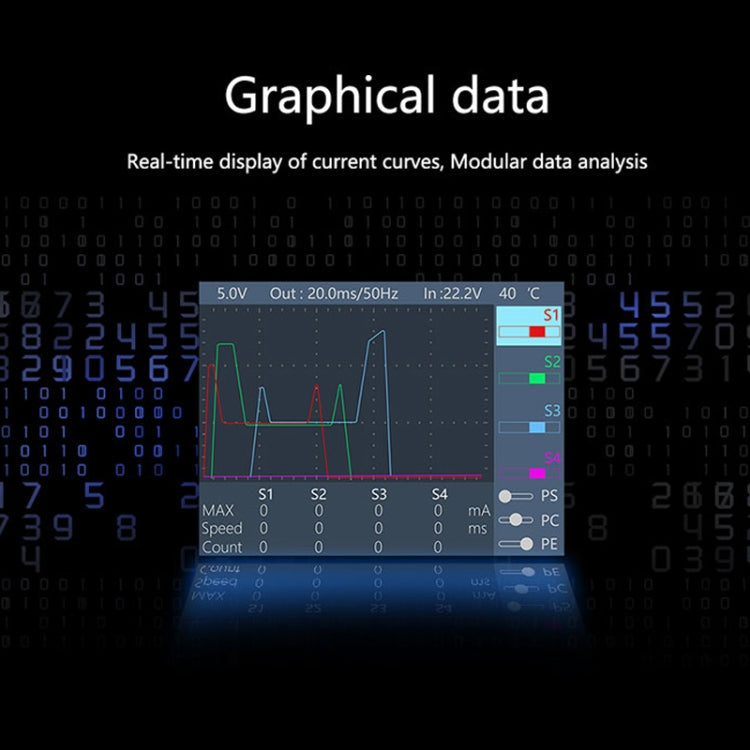

3. Graphical data, real-time display of the current curve, data analysis

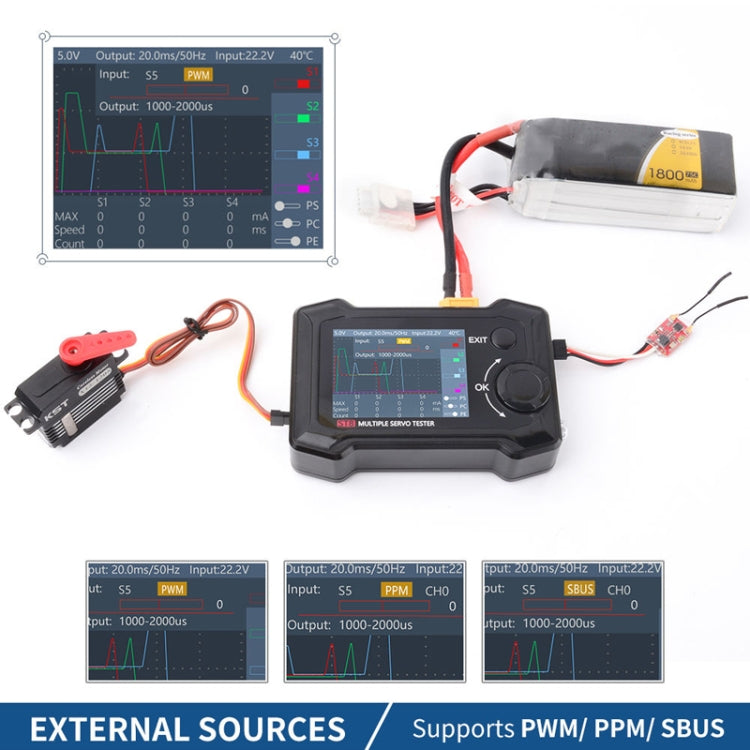

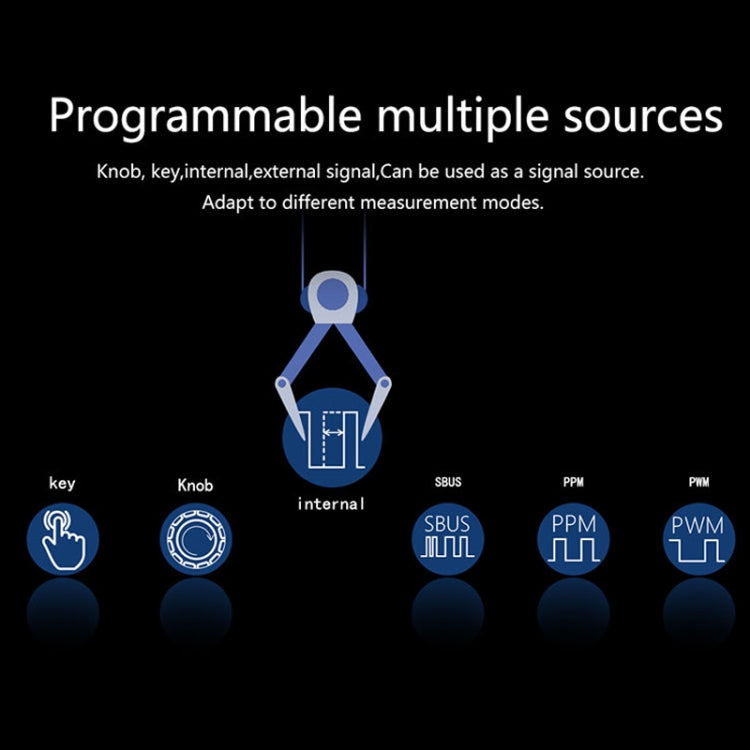

4. Programmable multiple signal sources: knob, key, internal and external signals can be used as signal sources to fit different measurement modes

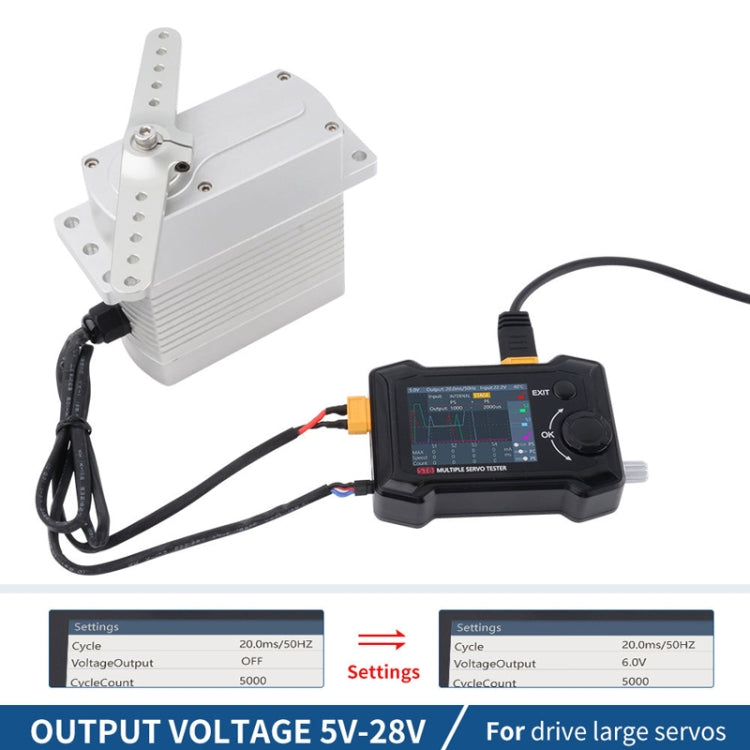

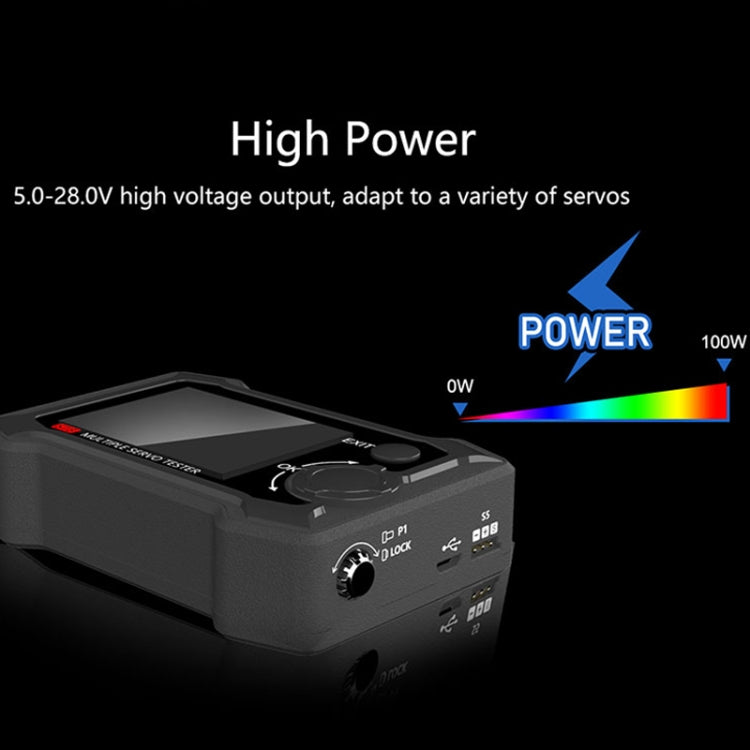

5. 5.0-28.0V high voltage output, suitable for a variety of servos

Parameters:

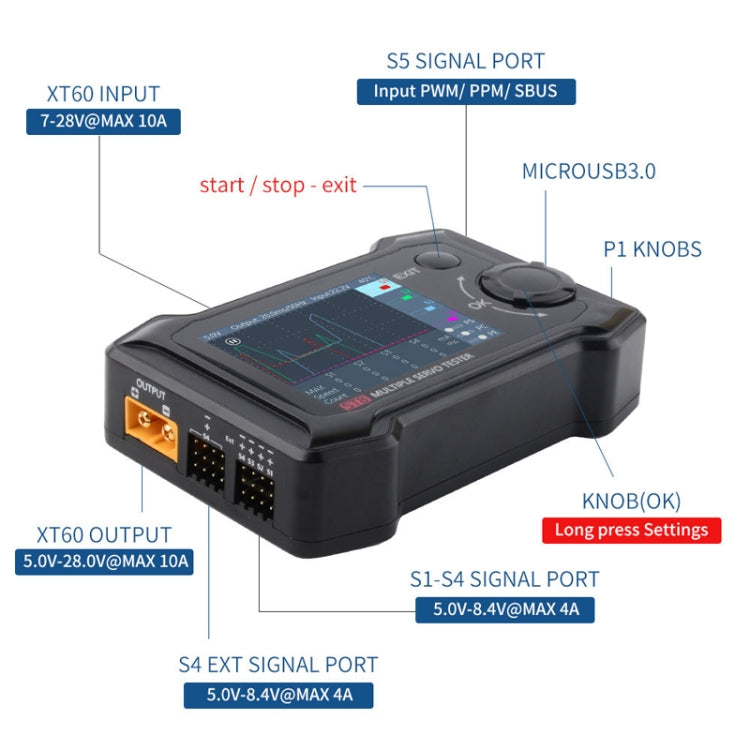

1. Input voltage: 7-28V MAX 10A
2. Main input port: 5.0V-28.0V MAX 10A
3. Signal port output voltage: 5.0-8.4V MAX 4A/S1-S4; 5.0-8.4V MAX 4A/S4 Ext
4. Output signal: 100us-2900us 33-1000Hz S1-S4; PWM 500us-2500us S5; PPM 8CH S5; SBUS 16CH S5
5. P1 knob range: 1000us-2000us P1
6. MicroUSB: firmware upgrade USB3.0
7. LCD display: 2.4-inch TFT RGB, 320 x 240 pixels
8. Size: 99 x 68 x 26mm
9. Weight: 140g

Specification:

Package Weight

One Package Weight

0.16kgs / 0.36lb

One Package Size

11cm * 8cm * 5cm / 4.33inch * 3.15inch * 1.97inch

Qty per Carton

30

Carton Weight

7.30kgs / 16.09lb

Carton Size

44cm * 22cm * 20cm / 17.32inch * 8.66inch * 7.87inch
