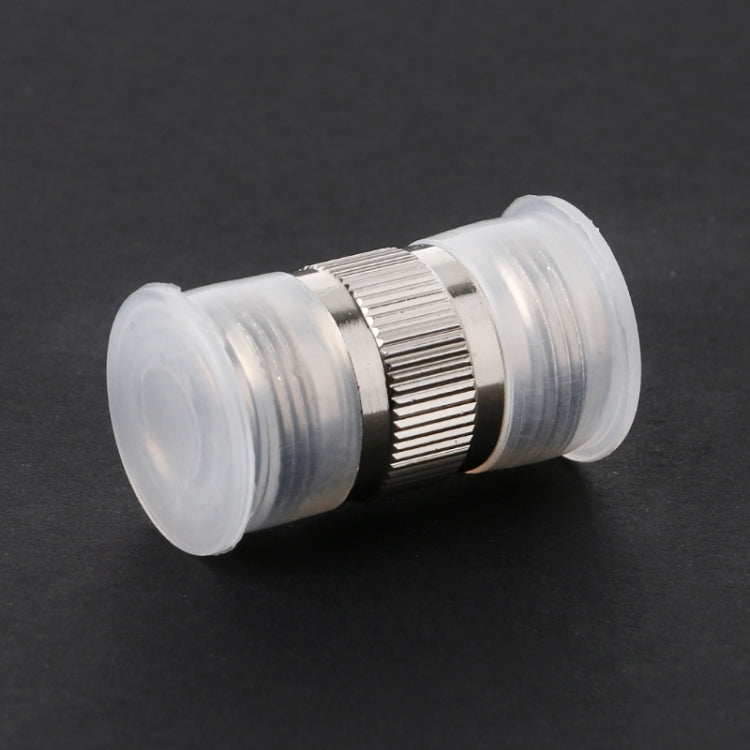

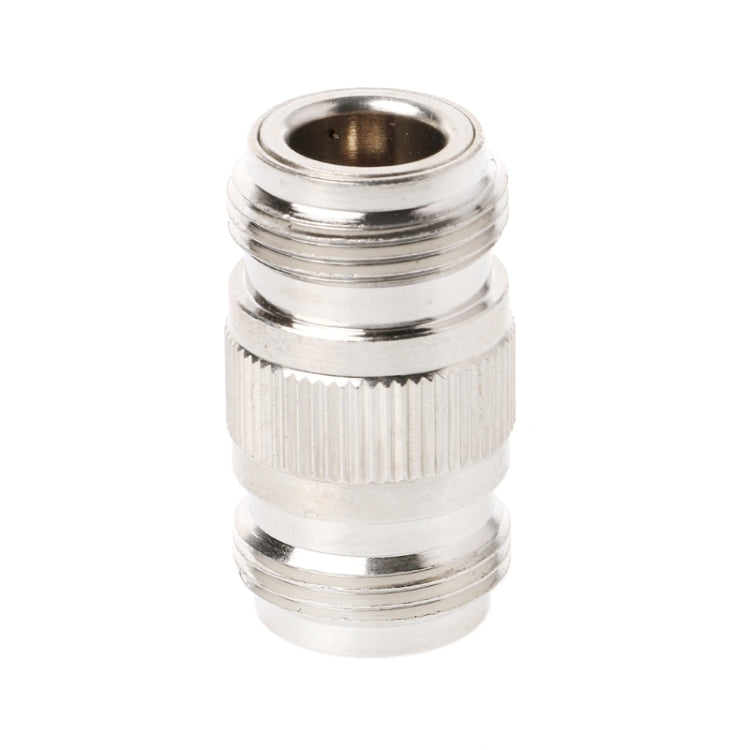

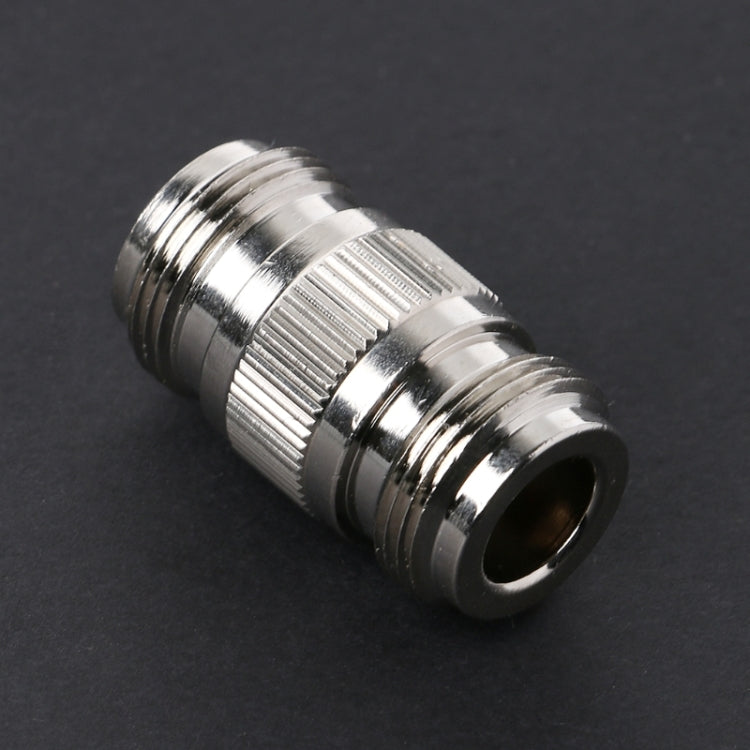

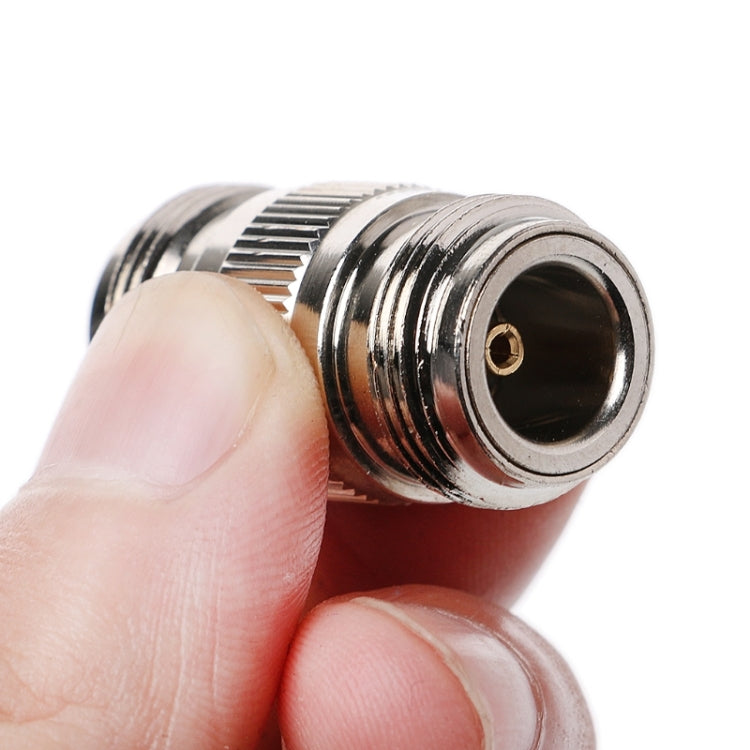

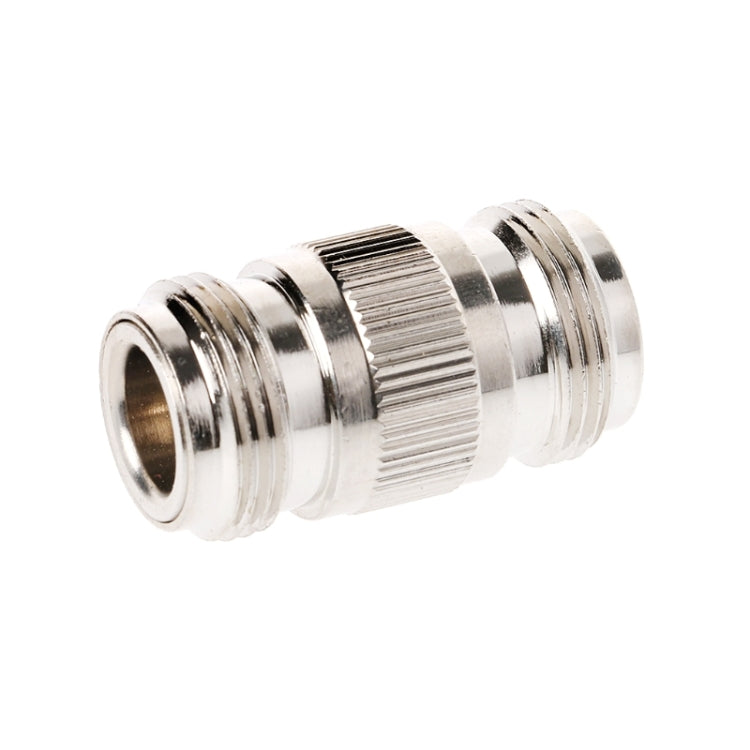

N-Type Double Female Jacks RF Coupler WiFi Coaxial Antenna Adapter Barrel Connector

$1.01

N-Type Double Female Jacks RF Coupler WiFi Coaxial Antenna Adapter Barrel Connector

Name: N-Type Double Female Jacks RF Coupler WiFi Coaxial Antenna Adapter Barrel Connector
Brand: Salrog (Powered by Solnuance)
SKU: SPC0046
Price: 1.01 USD
Availability: InStock

$1.01

Features:
1. The N model is a small and medium power connector with a threaded connection with a characteristic impedance of 50 ohms
2. The utility model has the advantages of high reliability, strong vibration resistance, good mechanical and electrical performance, etc.
3. Widely used in vibration and harsh environment of radio instruments, communication equipment, microwave test systems and launch ground to connect RF coaxial cable.
4. Using high precision semi rigid and semi flexible cable, frequency up to 11 GHz, and to get a smaller voltage

Technical specifications:
1. Temperature range: -55 to + 155 degree
2. Vibration: 100 m / s2 (10 - 500Hz), 10g
3. Characteristic impedance: 50 ohm
4. Frequency range: DC 11 GHz
5. Operating voltage: 1000Vr. m. s
6. Holding voltage: 2500Vr. m. s
7. Material: Copper

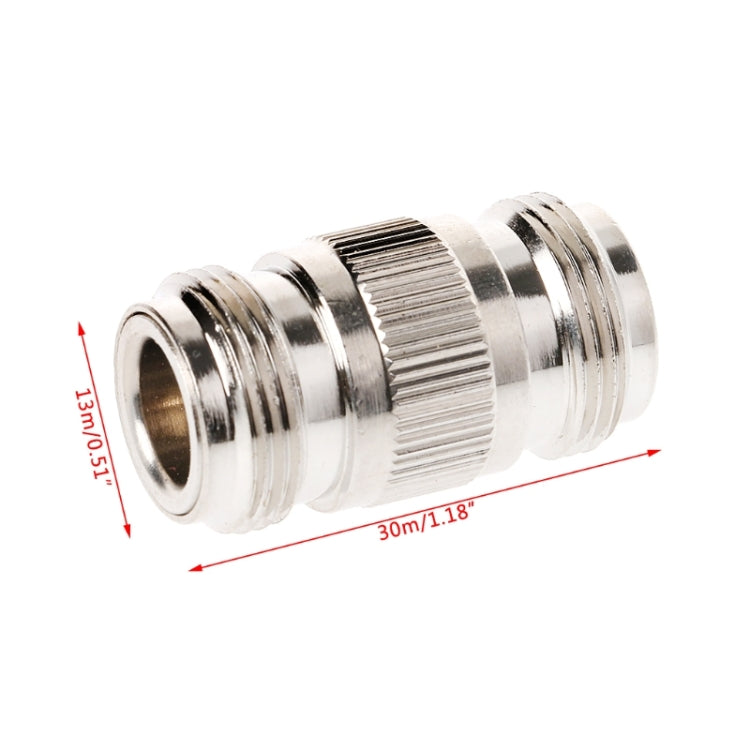

8. Size: approx. 30x13mm / 1.18x0.51 "(LxD)
9. Quantity: 1 Pc

Specification:

Package Weight

One Package Weight

0.03kgs / 0.07lb

One Package Size

4cm * 2cm * 2cm / 1.57inch * 0.79inch * 0.79inch

Qty per Carton

100

Carton Weight

3.80kgs / 8.38lb

Carton Size

30cm * 25cm * 20cm / 11.81inch * 9.84inch * 7.87inch
