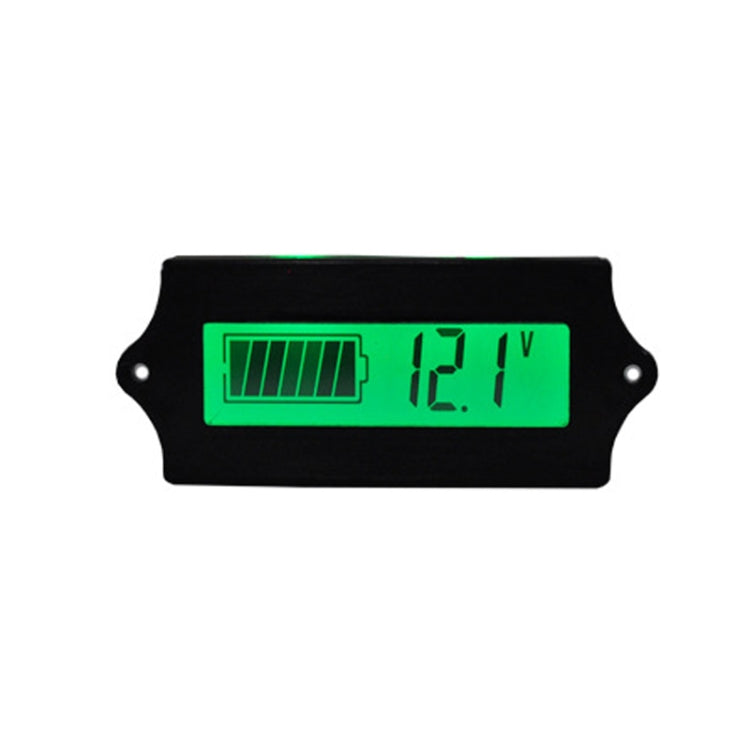

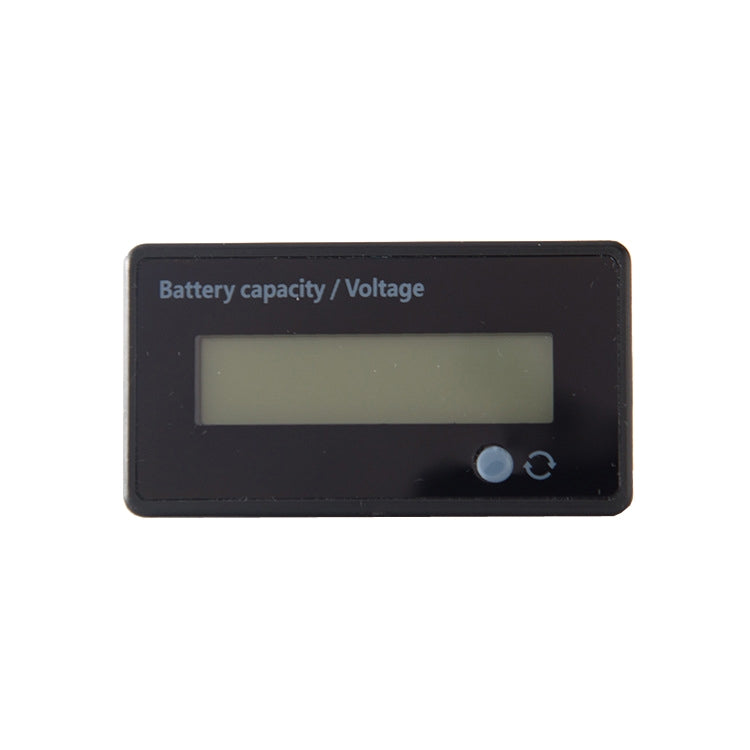

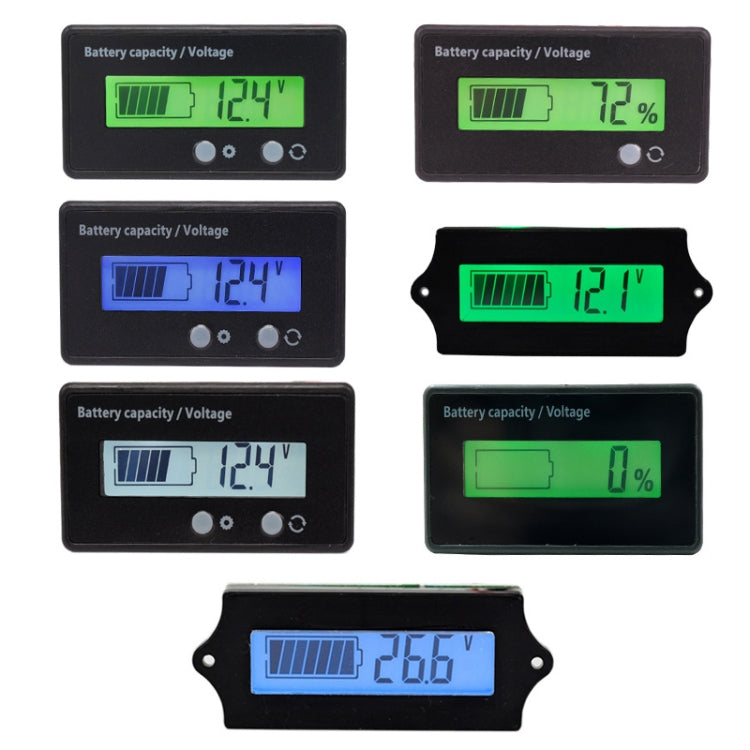

L6133 LCD Electric Motorcycle Power Display, Style: Internal Green Backlight

$3.24

L6133 LCD Electric Motorcycle Power Display, Style: Internal Green Backlight

Name: L6133 LCD Electric Motorcycle Power Display, Style: Internal Green Backlight
Brand: Salrog (Powered by Solnuance)
SKU: TBD0602736406
Price: 3.24 USD
Availability: InStock

$3.24

1. The battery has its own button, which supports self-modification of parameters and is easy to set.
2. Dual display of battery percentage + voltage
3. Comes with a switch to turn off the display
4. Battery percentage/voltage/off
5. Working voltage: DC6-63V
6. Working current: less than 5mA
7. Sleep power consumption: 12uA (12V is for testing)

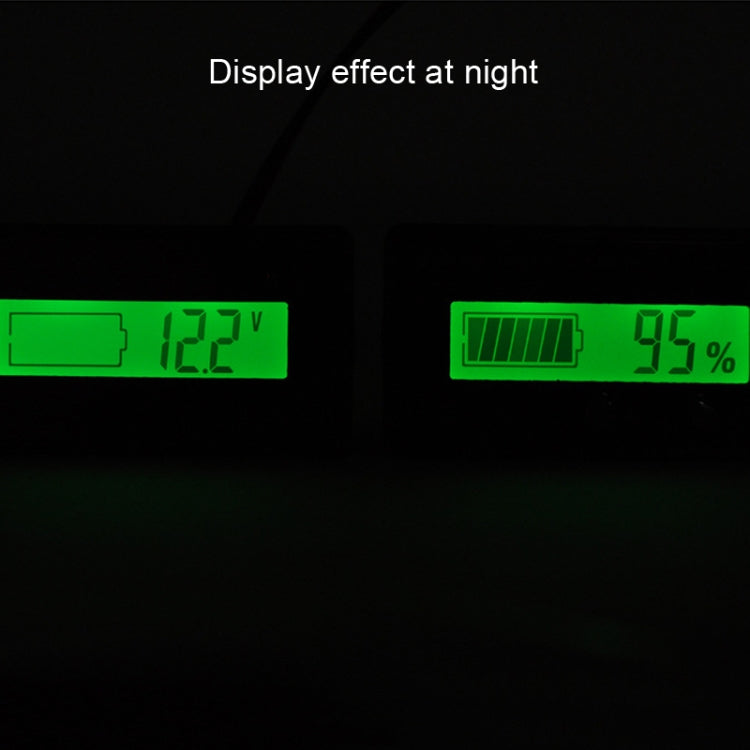

8. Display mode: LCD with backlight

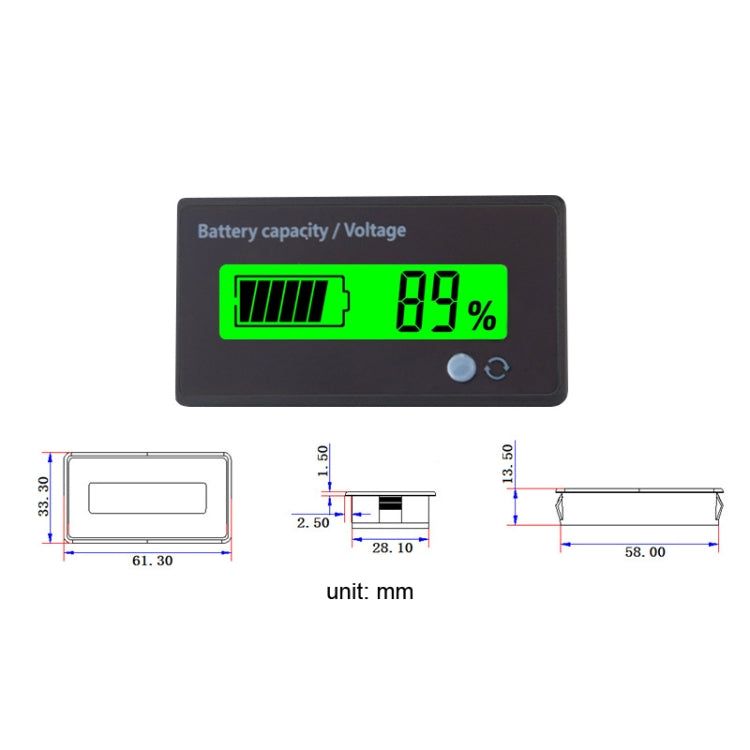

9. Mounting opening: about 58.5 x 28.5mm
10. Dimensions: about 61.3 x 33.3 x 13.5mm
11. Weight: about 19g

Applicable battery specifications:
1. Lead acid: 12/24/36/48V
2. Lithium battery: 2/3/4/5/6/7/8/9/10/11/12/13/14/15 strings

Specification:

Package Weight

One Package Weight

0.06kgs / 0.14lb

One Package Size

10cm * 8cm * 2cm / 3.94inch * 3.15inch * 0.79inch

Qty per Carton

468

Carton Weight

30.00kgs / 66.14lb

Carton Size

50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
