Coaxial Cable Video Amplifier

Name: Coaxial Cable Video Amplifier
Brand: Salrog (Powered by Solnuance)
SKU: S-CVB-0166
Price: 8.20 USD
Availability: InStock

$8.20

Introduce:

AD5301 is a video distribution amplifier, and can amplify video signal in a balanced manner, it is used in remote video signal transmission system to raise and balance signal loss and frequency distortior, and compatible with white / black and color video

Specification:

1) Input voltage: DC12V

2) Input / output load: 75ohm

3) Input connector: 1BNC

4) Output connector: 1BNC

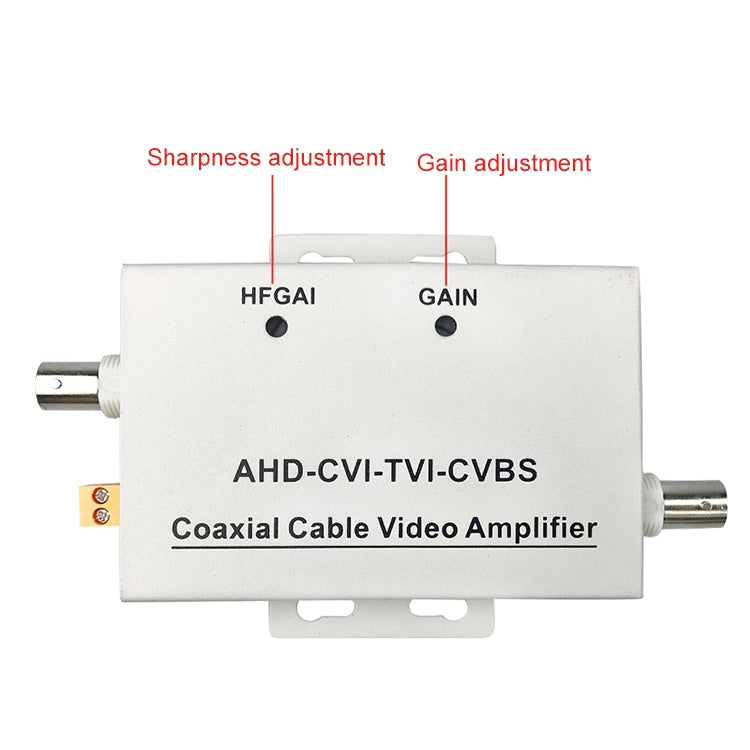

5) Frequency response: adjustable

6) Bandwidth(-3db): 10Hz to 7.5MHz

7) Gain: adjustable and max up to 6dB

8) Max output video voltage: 2.5V

9) Temperature: -10 to 45°C

10) Humidity: max up to 90%

Specification:

Package Weight

One Package Weight

0.22kgs / 0.48lb

One Package Size

14.5cm * 9.3cm * 3.5cm / 5.71inch * 3.66inch * 1.38inch

Qty per Carton

24

Carton Weight

6.30kgs / 13.89lb

Carton Size

30cm * 20cm * 20cm / 11.81inch * 7.87inch * 7.87inch
