Active CCTV UTP Twisted Pair Video Balun Transmitter and Receiver

$15.18

Active CCTV UTP Twisted Pair Video Balun Transmitter and Receiver

Name: Active CCTV UTP Twisted Pair Video Balun Transmitter and Receiver
Brand: Salrog (Powered by Solnuance)
SKU: S-CVB-0146
Price: 15.18 USD
Availability: InStock

$15.18

1. Smart Twisted Pair Video Balun are designed for CCTV signal transmission over unshielded twisted pair wire

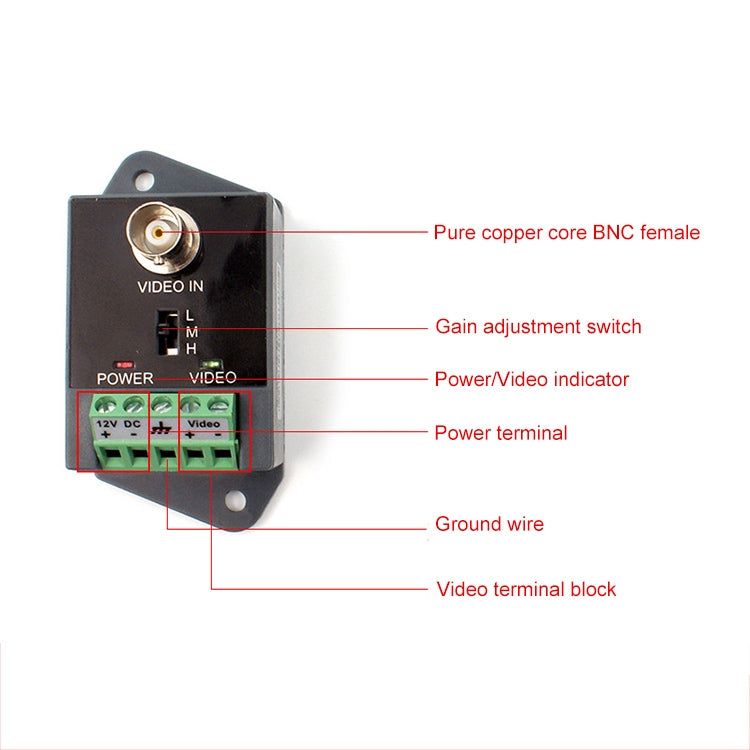

2. Three position range switch for gain select on transmitter.

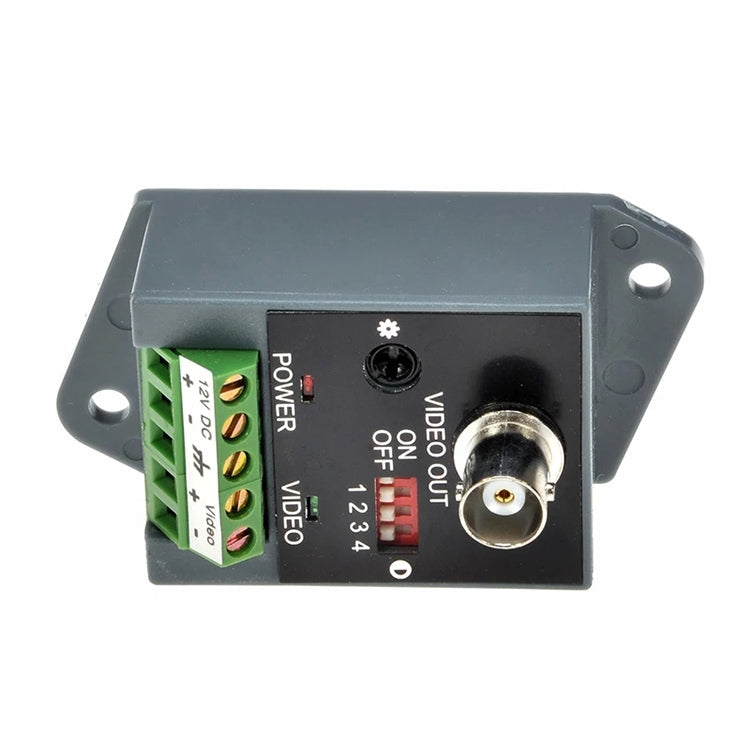

3. 4 position distance range switch on Receiver
4. UTP Video Balun with built in transient protection and ground lifting.
5. Specification of the CCTV Video Balun: single-channel
6. Frequency response: DC-6MHz
7. Common-mode/differential-mode rejection: 15kHz to 6MHz 60dB type
8. Impedance: BNC 75 Ohms
9. UTP/connector: 100 Ohms or RJ-45 100 Ohms
10. Environment:
- Temperature: 0 to 50 degrees Celsius
- Humidity: 0 to 95%
11. Wire type:
- Full-motion CCTV video at long distances (9,000ft / 3000M)
- Built-in linearity, sharpness and charoma control
- Enable unparalleled common interference rejection
- Built-in transient protection
- Improve the picture definition when connet to DVR or Quad, and reduce noise affects
- Dimensions: 76 x 40 x 26mm

Specification:

Package Weight

One Package Weight

0.21kgs / 0.46lb

One Package Size

12cm * 9cm * 5cm / 4.72inch * 3.54inch * 1.97inch

Qty per Carton

100

Carton Weight

21.00kgs / 46.30lb

Carton Size

47cm * 25cm * 52cm / 18.5inch * 9.84inch * 20.47inch
