8003H Analog Coaxial Dome Control Keyboard RS485 PTZ, Specification:2 Axis(US Plug)

$35.05

8003H Analog Coaxial Dome Control Keyboard RS485 PTZ, Specification:2 Axis(US Plug)

Name: 8003H Analog Coaxial Dome Control Keyboard RS485 PTZ, Specification:2 Axis(US Plug)
Brand: Salrog (Powered by Solnuance)
SKU: TBD0418932801A
Price: 35.05 USD
Availability: InStock

$35.05

1. Multi-functional design, can realize the setting and calling of camera head, high-speed dome, constant speed dome, low-speed dome, lens control and preset point
2. Input voltage: DC12V/500mA
3. Power consumption: less than 5W

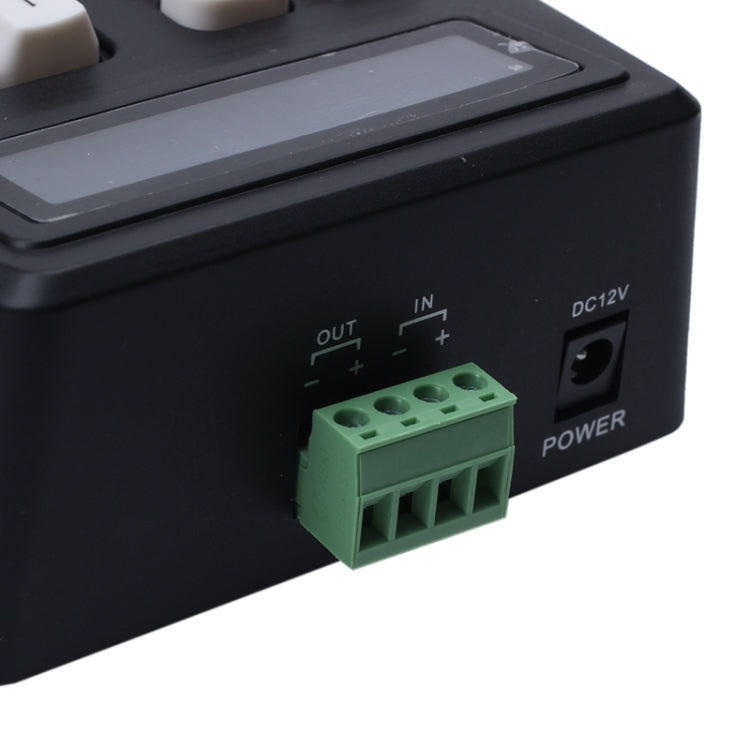

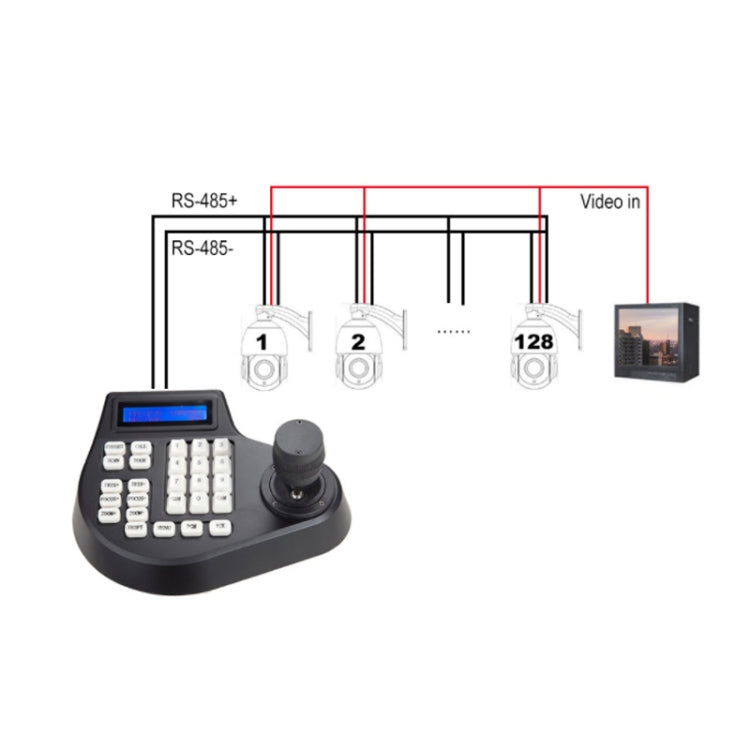

4. Communication interface: RS485 bus
5. Communication distance: 1500m (0.5mm twisted pair)
6. Communication protocol: PELCO-D, PELCO-P, SAMSUNG, AD, PANASONIC
7. Baud rate: 9600
8. Communication parameters: 8 data bits, 1 stop bit, no parity

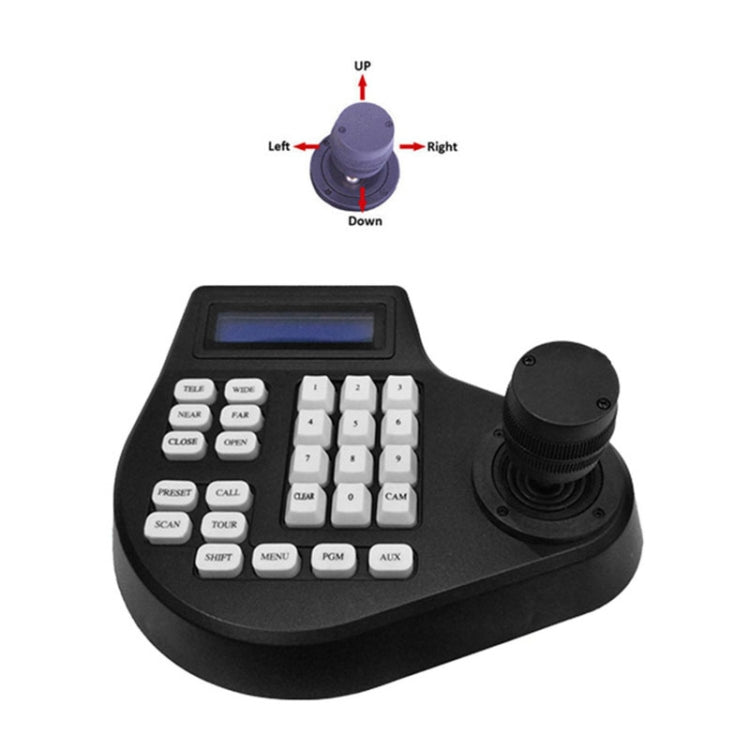

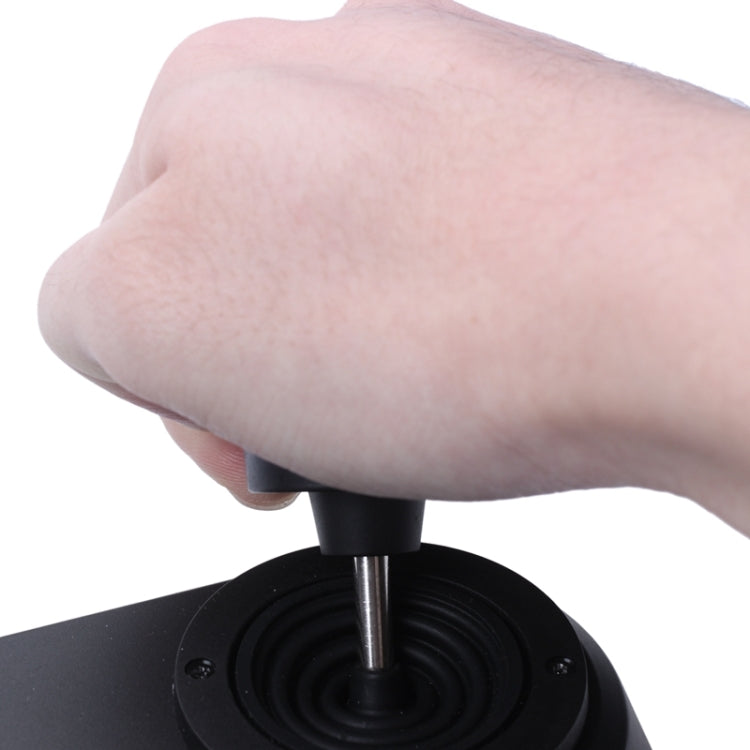

9. Joystick:
- 2 axis: joystick to control the ball machine up and down, left and right
- 3 axis: joystick control ball machine up and down, twist the joystick ball machine can be zoomed
- 4 axis: joystick control the ball machine up and down, twist the joystick ball machine can be zoomed, joystick more OK button
10. Display: LCD
11. Weight: about 890g

Specification:

Package Weight

One Package Weight

1.00kgs / 2.21lb

One Package Size

25cm * 21cm * 13cm / 9.84inch * 8.27inch * 5.12inch

Qty per Carton

30

Carton Weight

30.00kgs / 66.14lb

Carton Size

50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
