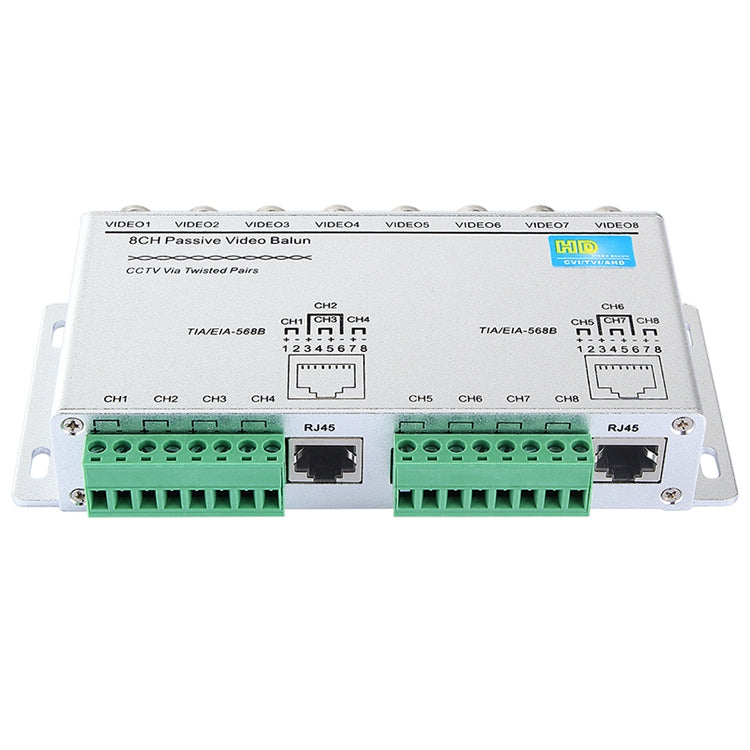

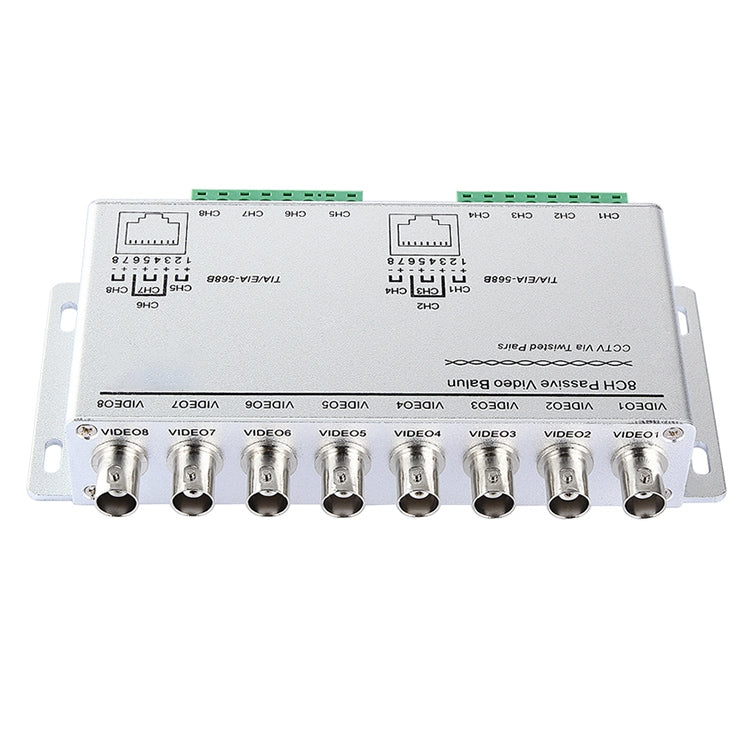

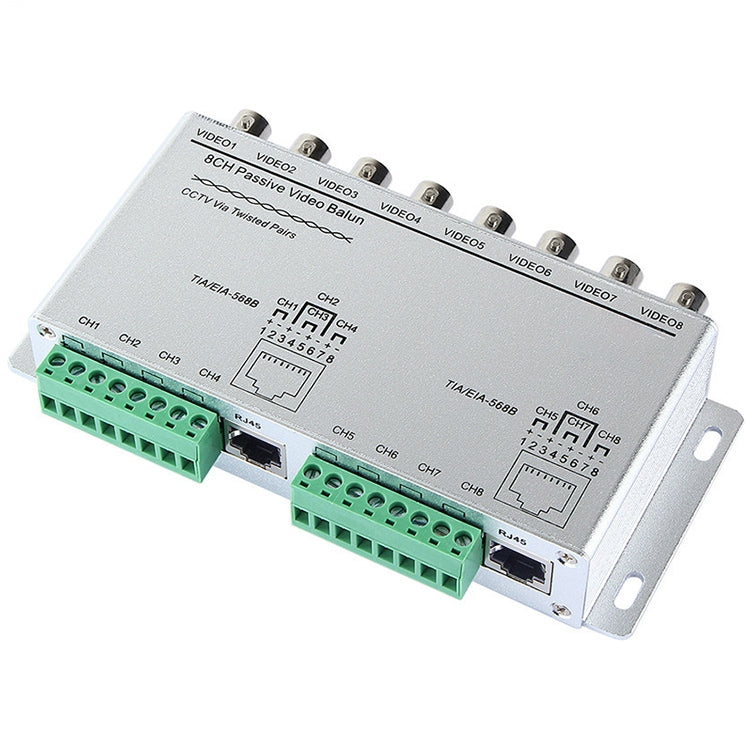

8 Channel Passive UTP Video Balun(Silver)

$12.13

8 Channel Passive UTP Video Balun(Silver)

Name: 8 Channel Passive UTP Video Balun(Silver)
Brand: Salrog (Powered by Solnuance)
SKU: S-CVB-0150
Price: 12.13 USD
Availability: InStock

$12.13

Description:

1) Adopt differental signal transmissin with excellentanti-jamming ability

2) Save project wire expenses, each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit of video signal

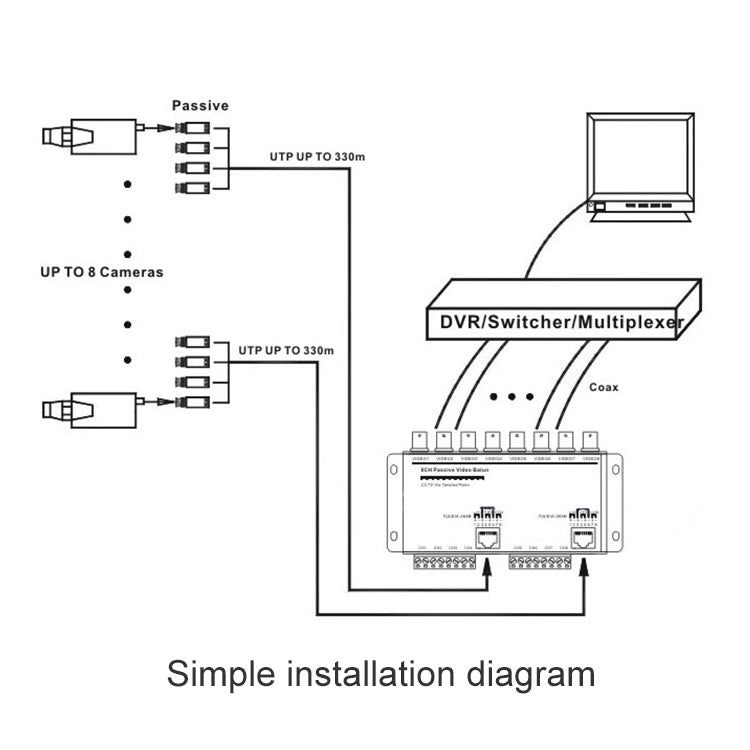

3) Full-motion CCTV video at distances up to 330m when used with any passive UTP video transceiver

4) Up to 1500m with any active UTP video receiver

5) No power required

6) Built-in transient suppression protection

Technical Specification:

1) Frequency response: DC-8MHz

2) CMRR (Common Mode Rejection Ratio): 60DB

3) Impedance: BNC ternimal: 75Ω, Connection terminal: 100Ω

4) Working temperature: -10°C - 70°C

5) Storage temperature: -30°C - 70°C

6) Applicable to NTSC, PAL, SECAM, and CCIR systems.

7) Power supply: DC 12V (Max: 50mA)

8) Characteristic impedance: 100Ω ± 20Ω

9) DC loop resistance: 18Ω/100m

10) Differential capacitance: 62pf/m (maximum)

11) Size: 157x65x29mm

12) Weight: 167g

Specification:

Package Weight

One Package Weight

0.35kgs / 0.78lb

Qty per Carton

24

Carton Weight

9.20kgs / 20.28lb

Carton Size

40cm * 30cm * 30cm / 15.75inch * 11.81inch * 11.81inch

Loading Container

20GP: 740 cartons * 24 pcs = 17760 pcs
40HQ: 1719 cartons * 24 pcs = 41256 pcs
