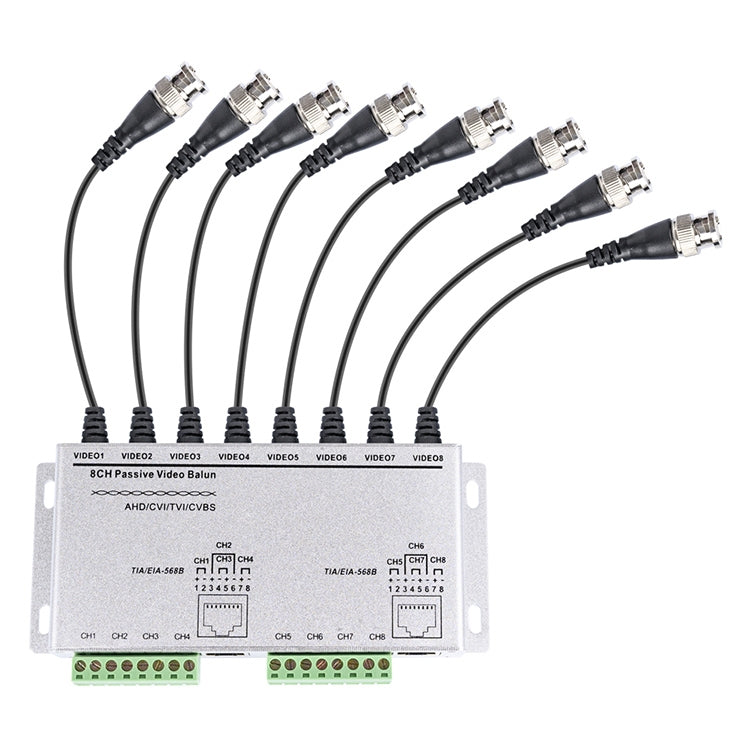

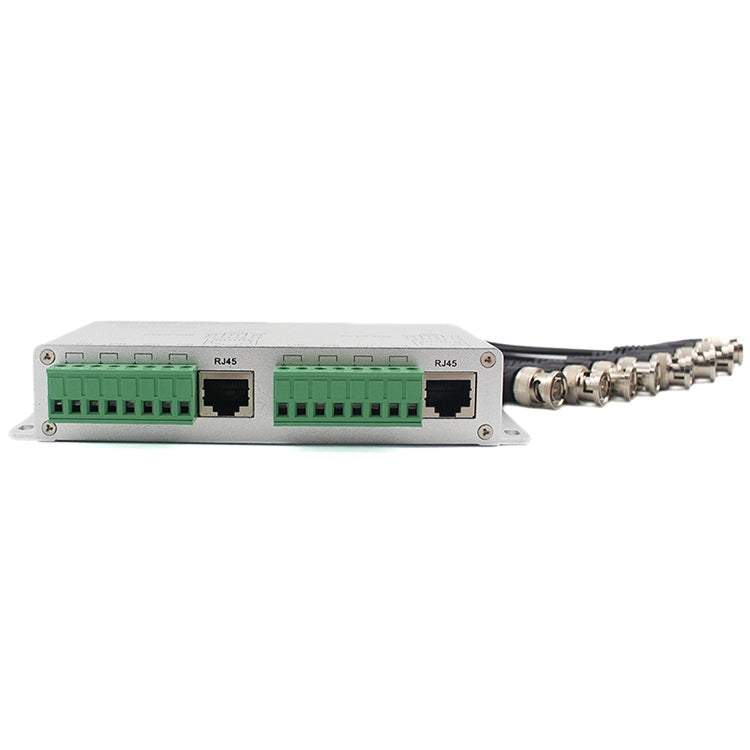

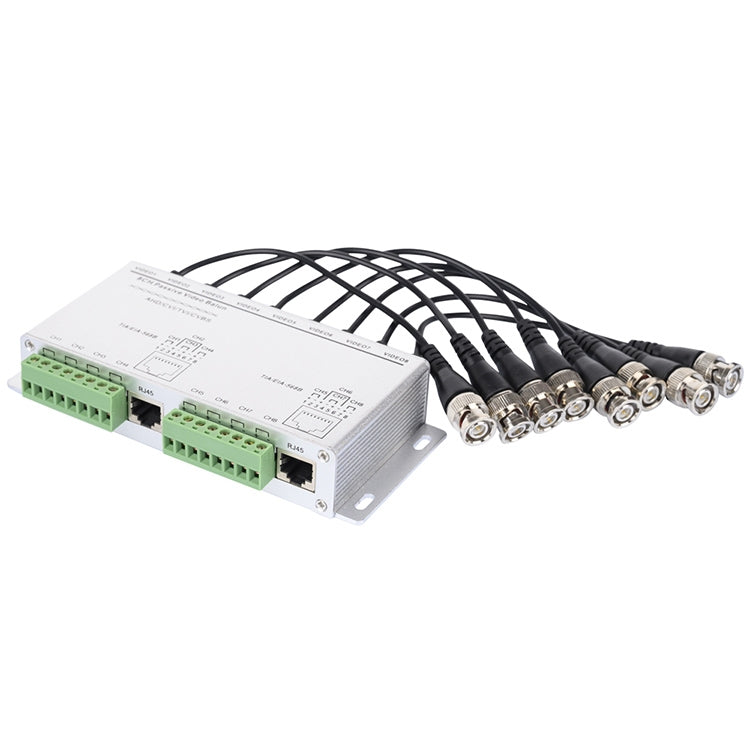

8 CH UTP Passive Video Balun , CCTV Via Twisted Pairs

$14.16

8 CH UTP Passive Video Balun , CCTV Via Twisted Pairs

Name: 8 CH UTP Passive Video Balun , CCTV Via Twisted Pairs
Brand: Salrog (Powered by Solnuance)
SKU: S-CVB-0175
Price: 14.16 USD
Availability: InStock

$14.16

1) Adopt differential signal transmission with excellent anti-jamming ability

2) Save project wire expenses, each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit four channels of video signal

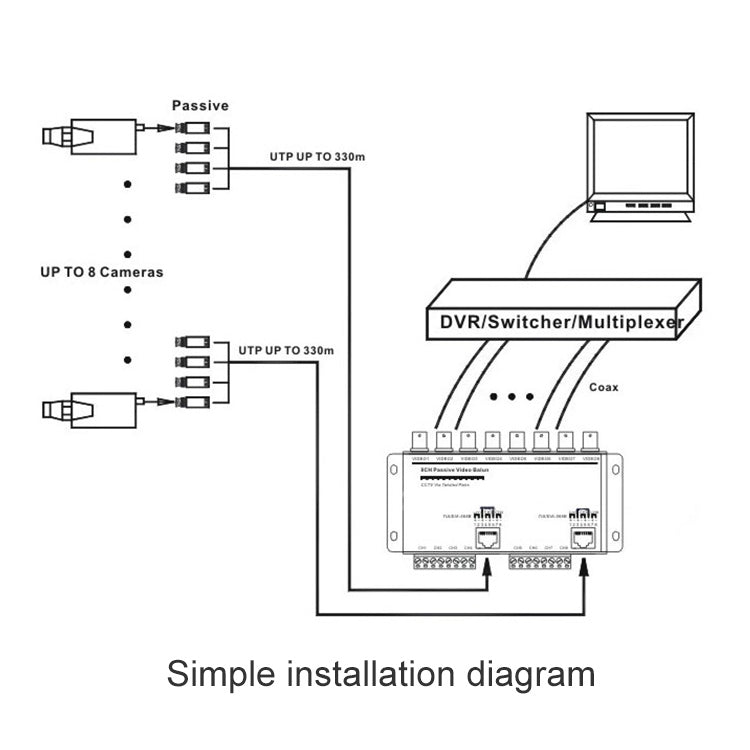

3) Full-motion CCTV video at distance up to 330m when used with any passive UTP video transceiver

4) Up to 1500m with any active UTP video receiver

5) No power required

6) Built-in transient suppression protection

7) Frequency response: DC-8MHz

8) CMRR (Common mode rejection ratio): 60dB

9) Impedance: BNC / 75ohms, RJ / 100ohms

10) Applicable to NTSC / PAL / SECAM / CCIR systems

11) Dimensions: 157 x 65 x 29mm

Specification:

Package Weight

One Package Weight

0.55kgs / 1.21lb

One Package Size

17cm * 13.5cm * 6cm / 6.69inch * 5.31inch * 2.36inch

Qty per Carton

30

Carton Weight

15.50kgs / 34.17lb

Carton Size

42cm * 35cm * 30cm / 16.54inch * 13.78inch * 11.81inch
