4 Channel Passive Video BNC to UTP RJ45 Balun Transceiver

$4.83

4 Channel Passive Video BNC to UTP RJ45 Balun Transceiver

Name: 4 Channel Passive Video BNC to UTP RJ45 Balun Transceiver
Brand: Salrog (Powered by Solnuance)
SKU: S-CVB-0148
Price: 4.83 USD
Availability: InStock

$4.83

Description:

1) This BNC to UTP RJ45 Balun transmits video signal via UTP Lan cable.

2) Input: BNC-video

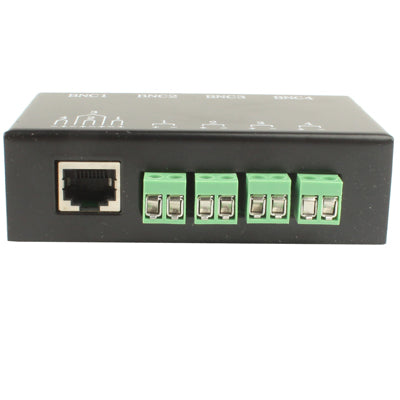

3) Output 1 of 4ch box - One RJ45, each for 4 channels (Pin 1-2 ch1, Pin 4-5 ch2, pin 3-6 ch3, pin 7-8 ch4).

4) Output 2 of 4ch box - Four screw output for 4 channels.

5) Passive design (no power required).

6) This Video BNC UTP RJ45 Balun using standard LAN cable, patching.

7) This 4 Channel BNC UTP RJ45 Balun does not support 12V power transmission.

8) Maximum 300m color video working distance (much better than coaxial cable 100m).

9) Casing Material: Metal

10) Dimension: 96x80x30mm

11) Weight: 257g

Specification:

Package Weight

One Package Weight

0.23kgs / 0.51lb

One Package Size

11cm * 10cm * 5cm / 4.33inch * 3.94inch * 1.97inch

Qty per Carton

96

Carton Weight

26.90kgs / 59.30lb

Carton Size

46cm * 42cm * 32cm / 18.11inch * 16.54inch * 12.6inch
