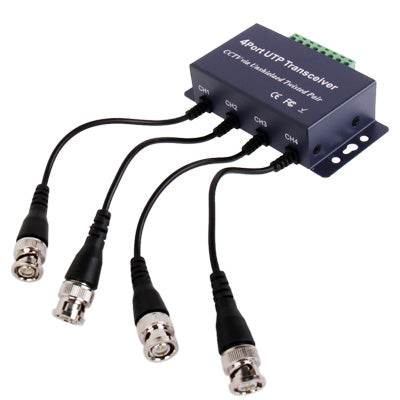

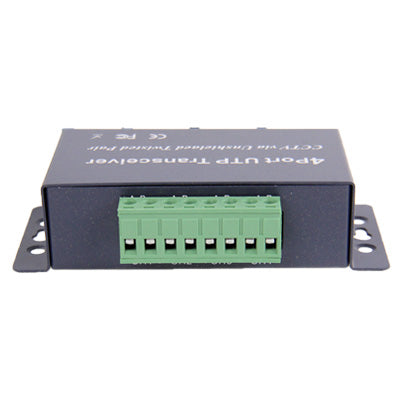

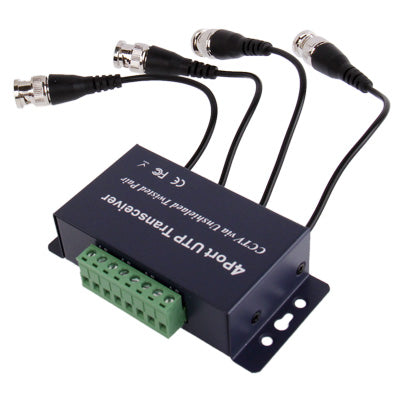

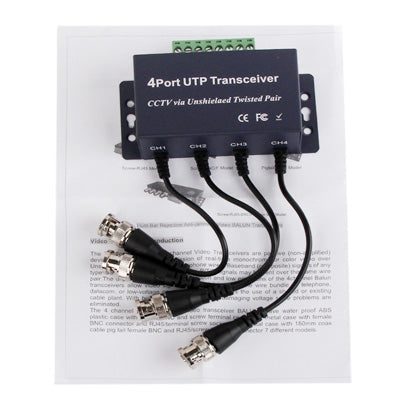

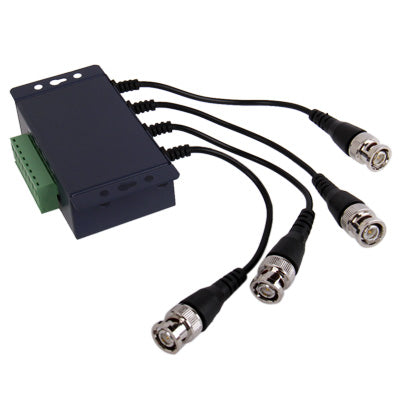

4 CH UTP Passive Balun Transceivers

Name: 4 CH UTP Passive Balun Transceivers
Brand: Salrog (Powered by Solnuance)
SKU: S-CVB-0172
Price: 4.83 USD
Availability: InStock

$4.83

1. Cable distance: Up to 2000ft transmitter-receive UTP cat 5E or better. Point to point transmission of real-time PAL / NTSC or SECAM CVBS video signal
2. Video frequency response: DC TO 6 MHz
3. Common-mode / differential-mode reiection: 15KHz to 5KHz, 55dB typical
4. Line impedance: female / male BNC 75ohms, CAT5 line, terminal 100ohms
5. Wire type: One unshielded twisted pair 24-16 AWG (0.5-1.31mm), category type cat 5 or better. Impedance 100+/-20ohms
6. DC loop resistance 52ohms per 1000ft (18ohms per 100m)
7. Differential capacitance 19pF/ft max (62pF/m max)
8. Power supply: No external power required
9. Dimensions: 10 x 5.5 x 2.5cm

Specification:

Package Weight

One Package Weight

0.26kgs / 0.57lb

One Package Size

16cm * 11cm * 3.5cm / 6.3inch * 4.33inch * 1.38inch

Qty per Carton

60

Carton Weight

14.30kgs / 31.53lb

Carton Size

35cm * 33cm * 32cm / 13.78inch * 12.99inch * 12.6inch
