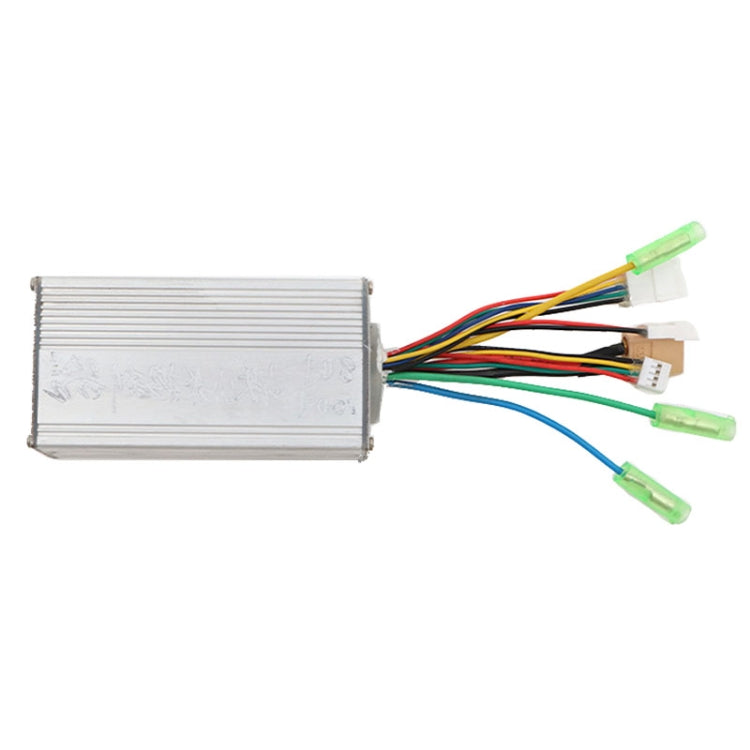

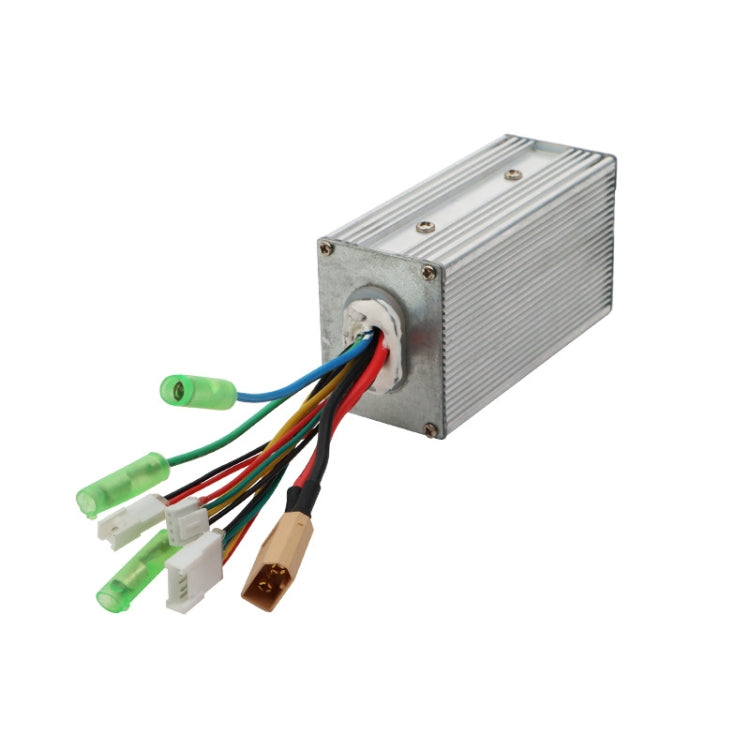

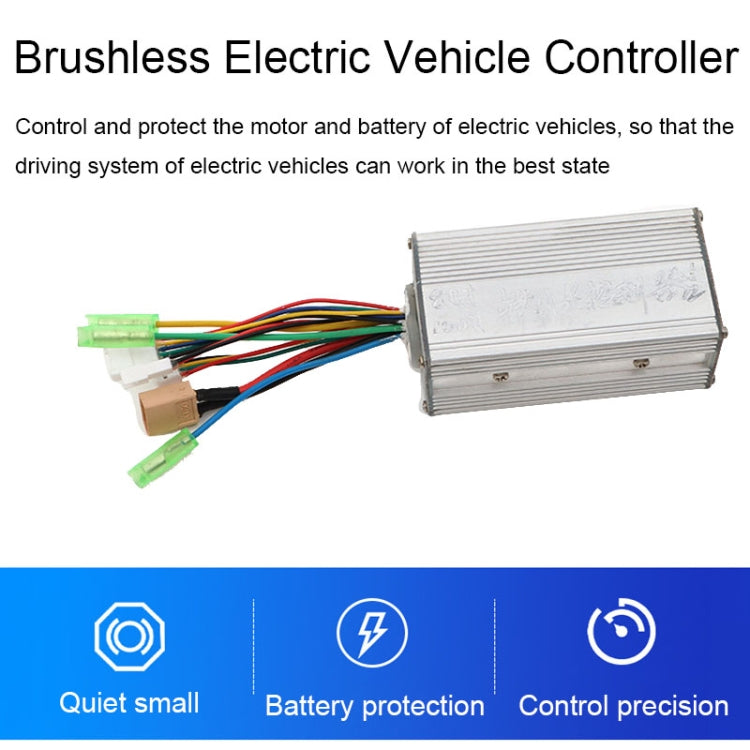

24V/36V/48V Sine Wave Brushless DC Electric Vehicle Controller 350W Controller Circuit Board

$10.33

24V/36V/48V Sine Wave Brushless DC Electric Vehicle Controller 350W Controller Circuit Board

Name: 24V/36V/48V Sine Wave Brushless DC Electric Vehicle Controller 350W Controller Circuit Board
Brand: Salrog (Powered by Solnuance)
SKU: TBD06036421
Price: 10.33 USD
Availability: InStock

$10.33

1. Working voltage: 24-48V
2. Rated power: 350W
3. Battery voltage: 24-36-48V
4. Peripheral power supply voltage: 12V
5. Instrument supply voltage: 12V
6. Continuous current: 20A
7. Safety protection: overheat protection, undervoltage protection, overcurrent protection, stall protection
8. Temperature protection: reduce power at 85 degrees Celsius, stop output at 110 degrees Celsius
9. Waterproof grade: IP54
10. The motor has strong applicability and matches most motors

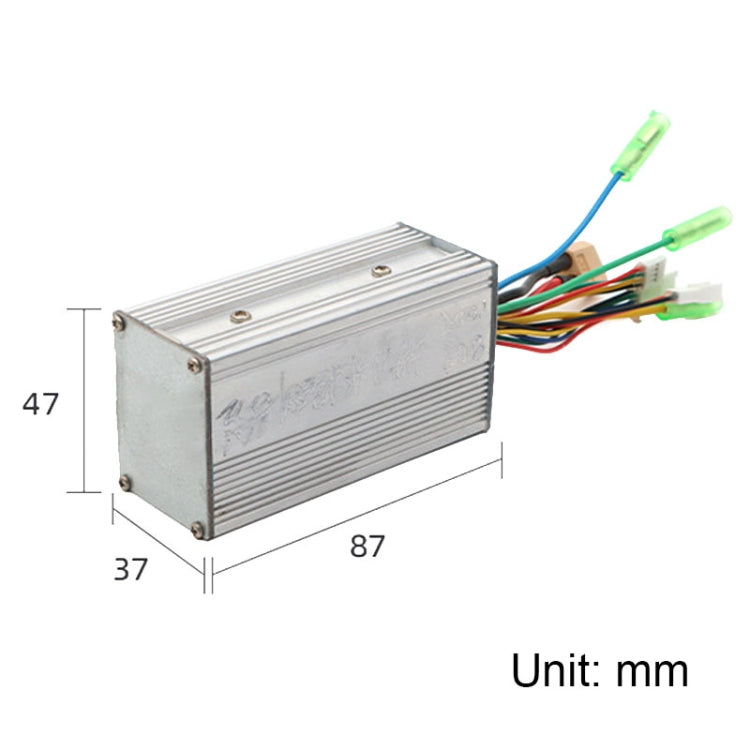

11. Product size: 4.7 x 8.7 x 3.7 cm
12. Weight: 120 grams

Specification:

Package Weight

One Package Weight

0.15kgs / 0.34lb

One Package Size

12cm * 8cm * 5cm / 4.72inch * 3.15inch * 1.97inch

Qty per Carton

194

Carton Weight

30.00kgs / 66.14lb

Carton Size

50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
