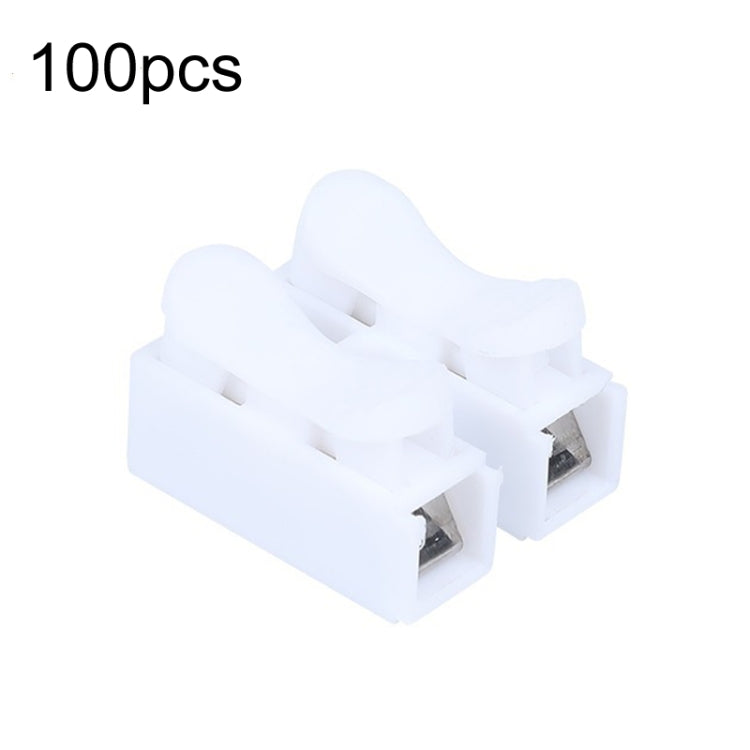

100pcs Self-Locking Push Type Ceiling Light Quick Terminal Block, Specification: CH-2

$1.67

100pcs Self-Locking Push Type Ceiling Light Quick Terminal Block, Specification: CH-2

Name: 100pcs Self-Locking Push Type Ceiling Light Quick Terminal Block, Specification: CH-2
Brand: Salrog (Powered by Solnuance)
SKU: TBD0603355701
Price: 1.67 USD
Availability: InStock

$1.67

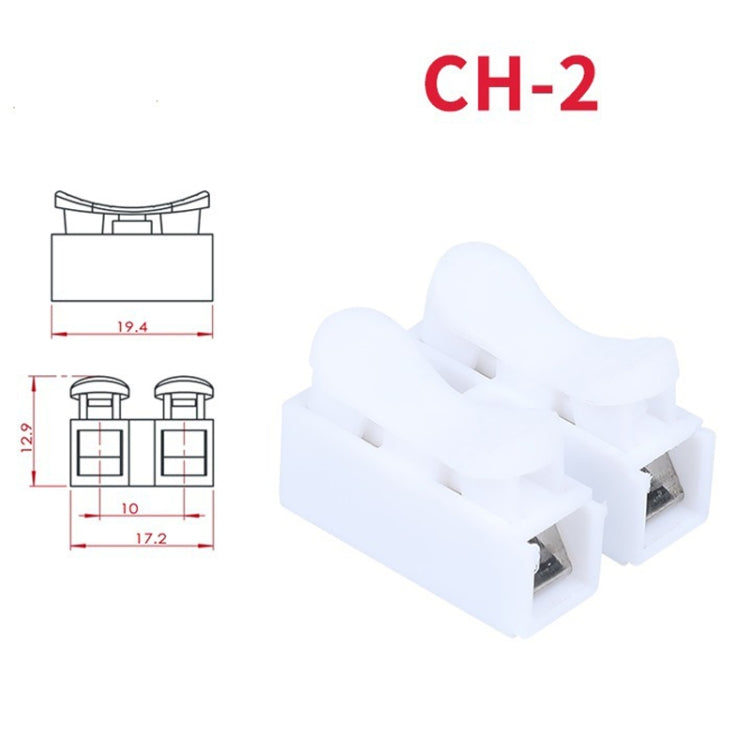

CH-2:
1. Applicable wire: 0.5-2.5mm^2
2. Rated voltage: 250V
3. Rated current: 10A
4. Withstanding voltage: 4KV
5. Dimensions: 17.5x20x13.5 mm
6. Shell material: PA66
7. Material of crimping frame: 304 stainless steel

CH-3:
1. Applicable wire: 0.5-2.5mm^2
2. Rated voltage: 250V
3. Rated current: 24A
4. Withstanding voltage: 4KV
5. Dimensions: 20x26x13 mm
6. Shell material: PA66
7. Material of crimping frame: 304 stainless steel

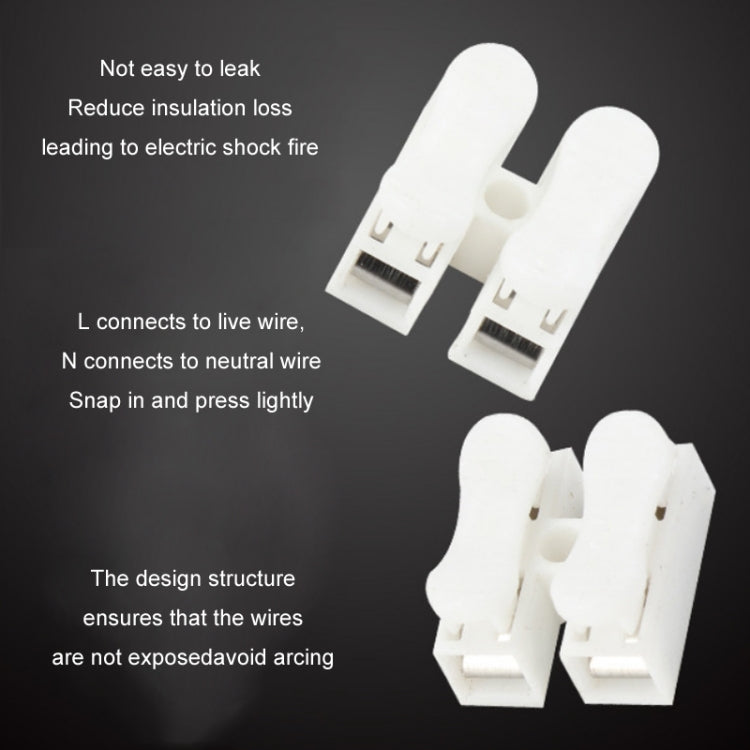

1. It is not easy to leak electricity and reduce the loss of insulation to cause electric shock and fire
2. L is connected to live wire, N is connected to neutral wire, click in and press lightly
3. The design structure ensures that the wires are not exposed to avoid arcing
4. Fast installation in 5 seconds, high security
5. High-quality insulating PA material, temperature resistance 105 degrees

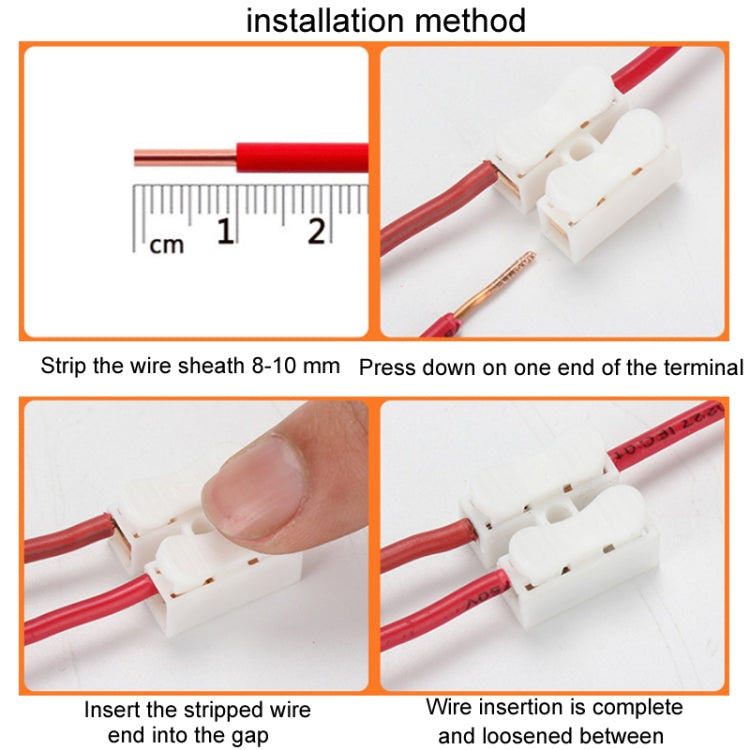

Installation method:
1. Strip off the wire sheath 8-10mm
2. Press down on one end of the terminal
3. Insert the stripped wire end into the gap
4. Wire insertion is complete and loosened between

Specification:

Package Weight

One Package Weight

0.40kgs / 0.89lb

One Package Size

13cm * 16cm * 7cm / 5.12inch * 6.3inch * 2.76inch

Qty per Carton

74

Carton Weight

30.00kgs / 66.14lb

Carton Size

50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
